Explore about our AJN's Eco-Friendly Hollow Panels

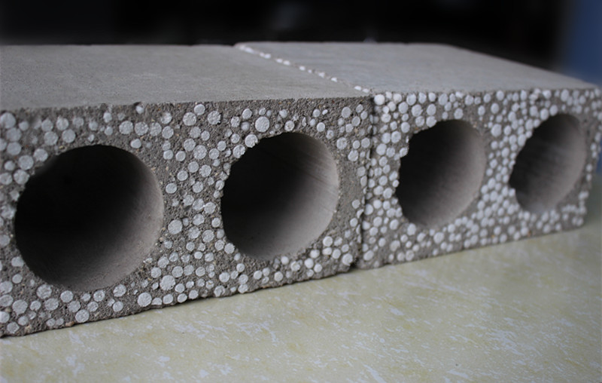

EPS and cement hollow panel is a kind of lightweight energy-saving hollow wall material, which compounds cement, EPS and sand. This product is widely applied to all kinds of modern buildings for interior wall partition, exterior wall and heat preservation for the floor and roof with special and feature of lightweight and cost-saving.
- Widely applied to all kinds of modern buildings for no-loading interior wall partition and exterior wall.
- Our Hollow Panels are used as the exterior & interior partition wall which have slab loading bearing requirements in the old building renovation projects.
- Applied to floor and roof insulation
Click on the images to display them in full size.
AJN Hollow Panel Specifications
- Length: 1500mm
- Width: 600mm
- Thickness: 90, 120, 150, 180mm
- Weight: 35-55kg/m2
- Soundproof: 36-50db
- Fireproof: A grade
AJN Hollow Panel Technical Indicators
| S/N | ITEMS | NATIONAL STANDARDS | TESTING INDEXES | ||
|---|---|---|---|---|---|
| 90mm | 120mm | 90mm | 120mm | ||
| 1 | Anti-impact performance | ≥5 | ≥5 | ＞5 | ＞5 |
| 2 | Anti-bending damage load/Times over dead weight | ≥1.5 | ≥1.5 | ＞2 | ＞2 |
| 3 | Anti-pressure strength | ≥3.5 | ≥3.5 | ＞3.5 | ＞3.5 |
| 4 | Soften coefficient | ≥0.80 | ≥0.80 | ＞0.8 | ＞0.8 |
| 5 | Surface density | ≤90 | ≤110 | ≤50 | ≤60 |
| 6 | Moisture rate | ≤8-12 | - | ＜8 | - |
| 7 | Drying shrinkage value | ≤0.6 | ≤0.6 | ＜0.6 | ＜0.6 |
| 8 | Single point hanging strength | ≥1000 | ≥1000 | ＞1000 | ＞1000 |
| 9 | Sound insulation capacity in the air | ≥35 | ≥40 | ＞35 | ＞40 |
| 10 | Fireproof limit | ≥1 | ≥1 | ＞3 | ＞3 |
